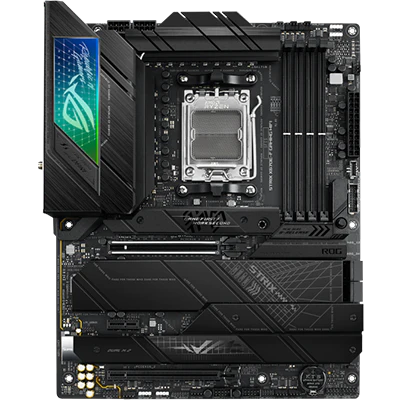

ASUS ROG STRIX X670E-F Gaming WiFi 6 AMD AM5 Motherboard - High Performance ATX Board for Gaming PCs, Streaming & Content Creation

$27.5 $50 -45%

Free shipping on all orders over $50

7-15 days international

15 people viewing this product right now!

30-day free returns

Secure checkout

32921108

Guranteed safe checkout

DESCRIPTION

CPU

AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*

* Refer to www.asus.com for CPU support list.

Chipset

AMD X670

Memory

4 x DIMM, Max. 128GB, DDR5 6400+(OC)/6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC andNon-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports
On-Die ECC function

Graphics

1 x DisplayPort*
1 x HDMI^® port**
* Supports max. 8K@60Hz as specified in DisplayPort 1.4.
**Supports max. 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

AMD Ryzen™ 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slots (supports x16 mode)
AMD X670 Chipset**
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x1 slot
* Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).

Storage

Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280
(supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280
(supports PCIe 5.0 x4 mode)
AMD X670 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

Ethernet

1 x Intel^® 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.2
* WiFi 6E 6GHz regulatory may vary between countries.

USB

Rear USB (Total 12 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C^®)
9 x USB 3.2 Gen 2 ports (7 x Type-A + 2 x USB Type-C^®)
2 x USB 2.0 ports
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C^®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback"
Audio Features
- Audio Shielding
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover

Back Panel I/O Ports

1 x USB 3.2 Gen 2x2 port (1 x Type-C^®)
9 x USB 3.2 Gen 2 ports (7 x Type-A, 2 xUSB Type-C^®)
2 x USB 2.0 ports
1 x DisplayPort
1 x HDMI^® port
1 x Wi-Fi Module
1 x Intel^® 2.5Gb Ethernet port
5 x Gold-plated audio jacks*
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
*The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C^®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with
Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4^®) header

Special Features

Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA
[white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsinks
- M.2 heatsink backplate
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers

Software Features

ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual
Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS^® Sound Unbound
- Anti-virus software
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
TPU
DIGI+ VRM
Turbo app
PC Cleaner
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Dynamic OC Switcher
FlexKey

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Q-Latch package for M.2 backplate
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
2 x Rubber Packages for M.2
1 x Rubber Package for M.2 backplate
Documentation
1 x User guide

Operating System

Windows^® 10 64-bit, Windows^® 11 64-bit

Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
